The Story

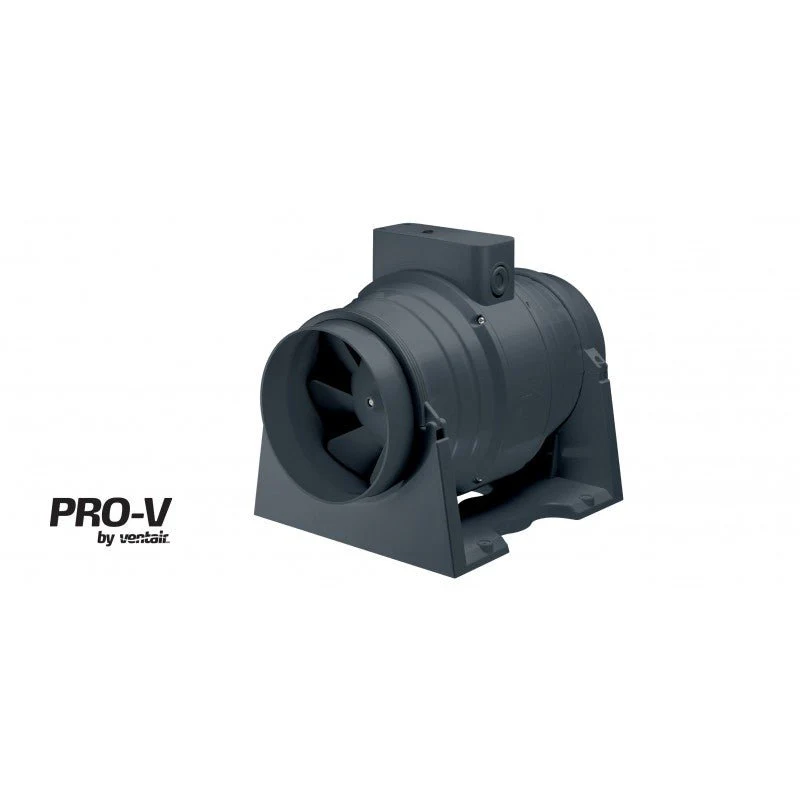

The Ventair Mixflow is a premium, high-powered in-line (mixflow) exhaust fan with a long-life ball-bearing motor — ideal for quiet room-to-room air transfer or extraction over long duct runs. Available in 100mm, 150mm and 200mm to suit a range of airflow needs, each with a 2-speed high/low switch and an integrated backdraft stopper.
Features
- Commercial-grade performance for hot or cold air transfer
- Powerful long-life ball-bearing motor — rated to 80,000hr continuous / 30,000 start cycles
- Ideal for long duct runs & multiple inlets
- Integrated energy-saving backdraft stopper
- 2-speed high/low external switch
- Plug & lead included
- IPX4 rated
- 5 Year Motor Warranty
Specifications
| VMFIL100 | VMFIL150 | VMFIL200 | |
| Duct Outlet | 100mm | 150mm | 200mm |
| Air Flow (High/Low) | 240 / 190 m³/hr | 561 / 438 m³/hr | 852 / 753 m³/hr |
| Motor (High/Low) | 30 / 25W | 50 / 40W | 130 / 105W |
| Noise (High/Low) | 37 / 30 dB(A) | 47 / 39 dB(A) | 53 / 45 dB(A) |
| Speed (High/Low) | 2500 / 2200 rpm | 2600 / 2100 rpm | 2500 / 2200 rpm |
| Min. Install Depth | 250mm | 280mm | 300mm |
| Dimensions | L297 × 229H mm | L312 × 247H mm | L296 × 282H mm |
All sizes: IPX4, sealed ball-bearing motor, integrated backdraft stopper, 5 Year Motor Warranty.
Description
The Ventair Mixflow is a premium, high-powered in-line (mixflow) exhaust fan with a long-life ball-bearing motor — ideal for quiet room-to-room air transfer or extraction over long duct runs. Available in 100mm, 150mm and 200mm to suit a range of airflow needs, each with a 2-speed high/low switch and an integrated backdraft stopper.
Features
- Commercial-grade performance for hot or cold air transfer
- Powerful long-life ball-bearing motor — rated to 80,000hr continuous / 30,000 start cycles
- Ideal for long duct runs & multiple inlets
- Integrated energy-saving backdraft stopper
- 2-speed high/low external switch
- Plug & lead included
- IPX4 rated
- 5 Year Motor Warranty
Specifications
| VMFIL100 | VMFIL150 | VMFIL200 | |
| Duct Outlet | 100mm | 150mm | 200mm |
| Air Flow (High/Low) | 240 / 190 m³/hr | 561 / 438 m³/hr | 852 / 753 m³/hr |
| Motor (High/Low) | 30 / 25W | 50 / 40W | 130 / 105W |
| Noise (High/Low) | 37 / 30 dB(A) | 47 / 39 dB(A) | 53 / 45 dB(A) |
| Speed (High/Low) | 2500 / 2200 rpm | 2600 / 2100 rpm | 2500 / 2200 rpm |
| Min. Install Depth | 250mm | 280mm | 300mm |
| Dimensions | L297 × 229H mm | L312 × 247H mm | L296 × 282H mm |
All sizes: IPX4, sealed ball-bearing motor, integrated backdraft stopper, 5 Year Motor Warranty.
