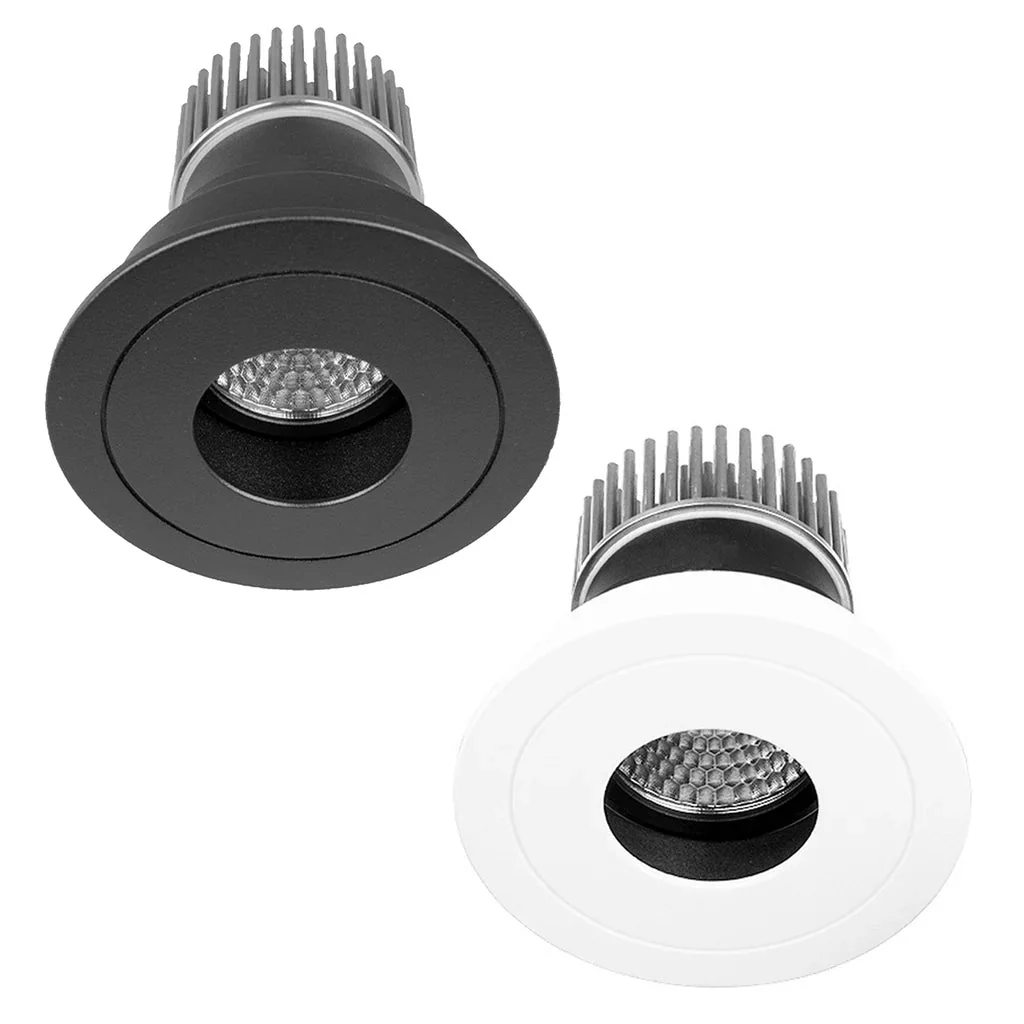

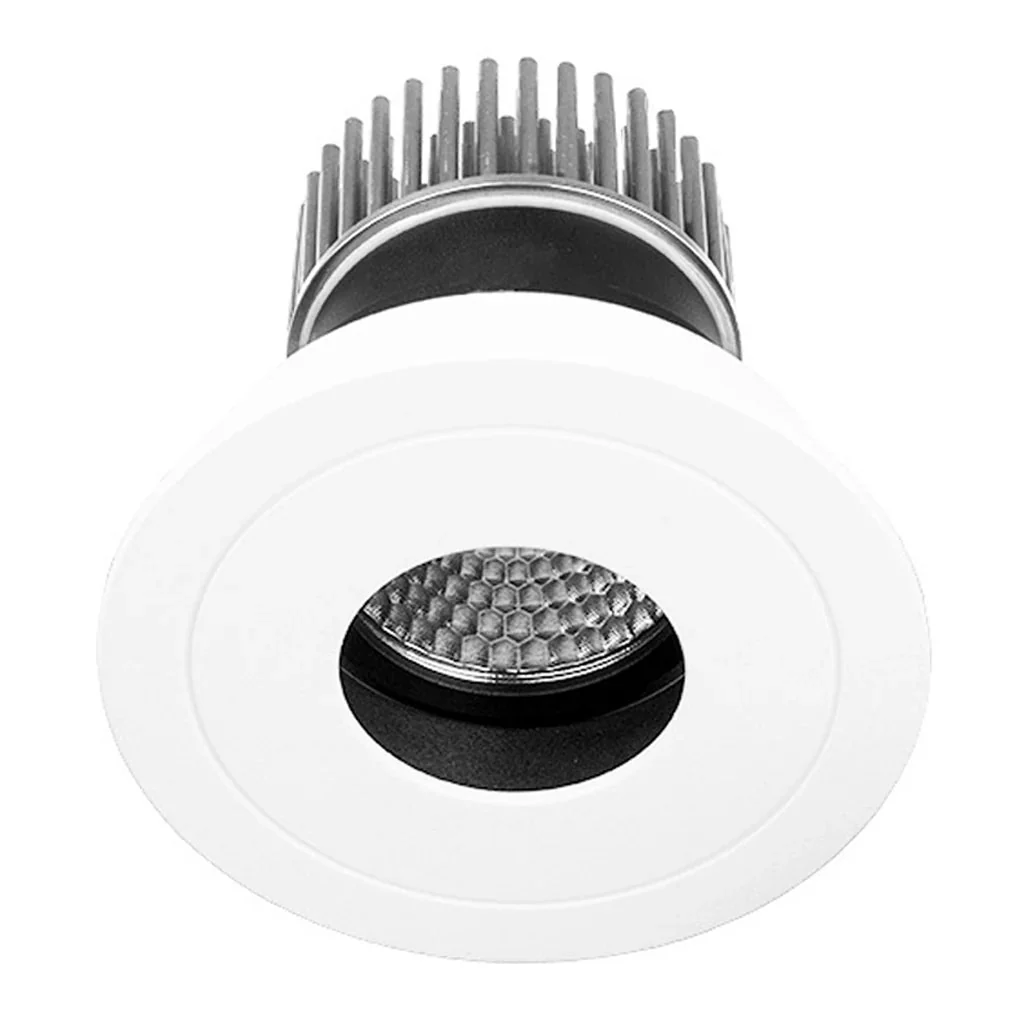

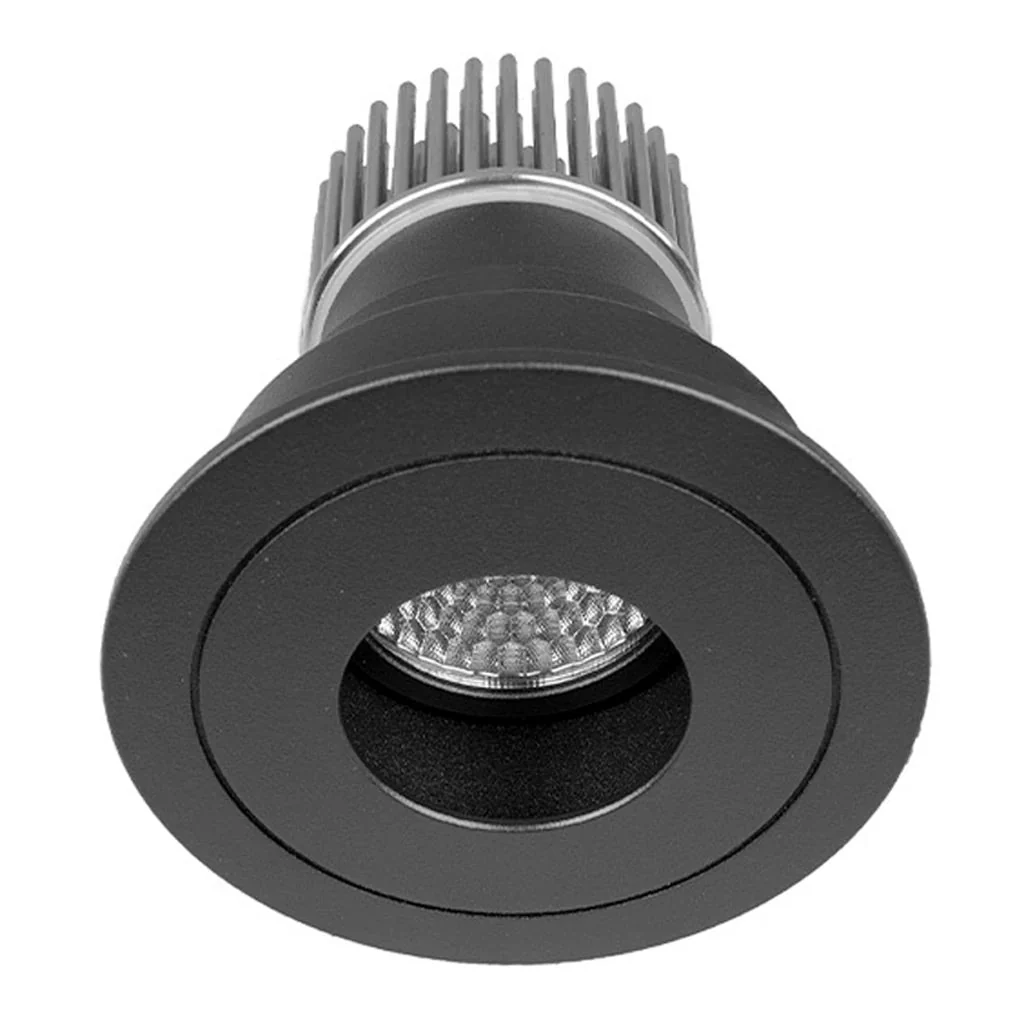

92mm LED Downlight 10w Black, White 2.7k/3k/4k CRI 90+ P12H Trend Lighting

Product Type: LED Downlight

Description:
Architectural design, remarkable efficiency and class leading light performance are the typical traits that make the Platinum P12H the ultimate downlight.

Specification:

• Colour: Black | White
• Wattage: 10w
• Power Consumption: 11.9 W Typical
• Nominal Voltage: 240 V AC 50/60 Hz
• Voltage Range: 220 - 265 V AC

• Power Factor: >0.93
• Circuit Protection OVP | OCP | OTP
• Dimming: Leading & Trailing Edge (to 10%) DALI Optional
• CCT: 2700K | 3000K | 4000K
• Lumens: 1104lm | 1144lm | 1216lm
• CRI: 94+
• Efficacy: ≥ 101 lm/w
• Colour Deviation: SDCM ≤ 3
• Lifetime > 60,000hrs (L80 B10)
• Beam Angle 20° | 38°
• Ingress Protection: IP20
• Operating Temperature: -25° to 60°C
• Warranty: 5 Years

Dimension:

• Height: 90mm
• Diameter: ø104mm
• Cut Out: ø92mm

Variant	Wattage	CCT	Trim Colour	Lumens	Beam Angle	CRI
Black - 2700k	10w	2700k	Black	1104lm	20°	94
Black - 2700k	10w	2700k	Black	1104lm	38°	94
Black - 3000K	10w	3000K	Black	1144lm	20°	94
Black - 3000K	10w	3000K	Black	1144lm	38°	94
Black - 4000K	10w	4000K	Black	1216lm	20°	94
Black - 4000K	10w	4000K	Black	1216lm	38°	94
White - 2700k	10w	2700k	White	1104lm	20°	94
White - 2700k	10w	2700k	White	1104lm	38°	94
White - 3000K	10w	3000K	White	1144lm	20°	94
White - 3000K	10w	3000K	White	1144lm	38°	94
White - 4000K	10w	4000K	White	1216lm	20°	94
White - 4000K	10w	4000K	White	1216lm	38°	94
